Hard Armor Ballistic Fabric

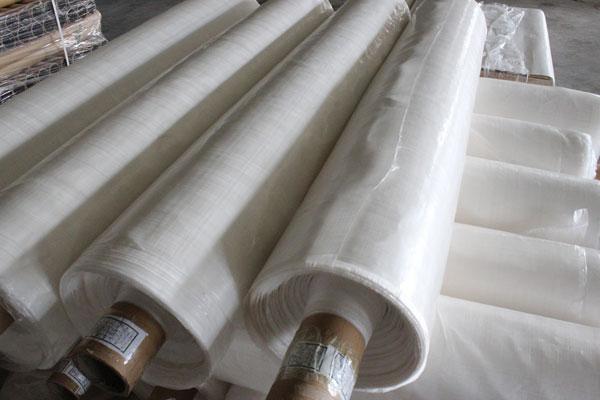

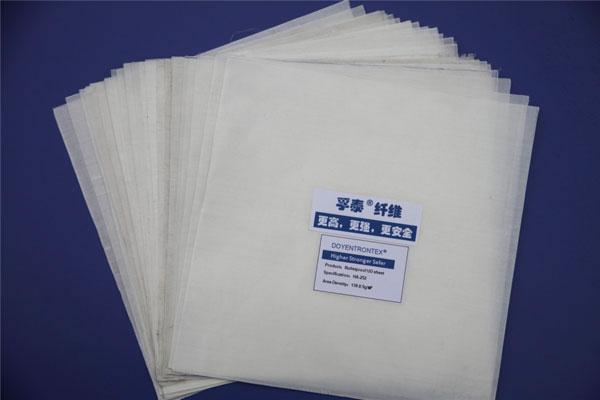

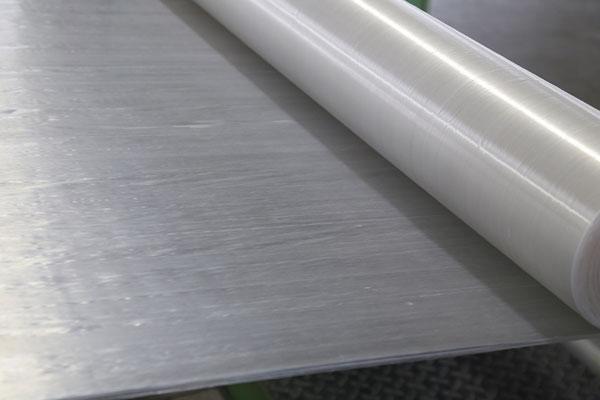

TYZ’s HA-252 bulletproof UD sheets are manufactured using UHMWPE reinforced bulletproof composite. The fabric itself consists of two plies of uni-directional fiber that is cross plied at a 90° angle to each other, with a special aqueous dispersion adhesive and specific technology. The outward appearance is a thinly sliced white textile fiber, primarily used in hard armor. The body armor’s light weight makes it ideal for protection, even under multiple bullet impacts and different angles, and also features an excellent UV and aging resistance. Its excellent fragment resistance properties also significantly reduce sunken deformations found in traditional body armor after multiple impacts. In addition, due to the low dielectric properties of PE fibers, it has a better stealth effect when used as a protective shell on warships, tanks, gun platforms and other military tools.

Item Area Density Thickness Route Size
HA-782 160±5g/m2 0.22±0.02㎜ 1200×2420㎜

Protection Performance:
PE plate can achieve NIJ010 1.06 III (M14 7.62 mm automatic rifle with 7.62mm NATO ammunition)
PE plate can achieve NIJ III+ (AK47 7.62x39 AK MSC)
PE Ceramic plate can achieve NIJ010 1.06 IV

Main Applications:

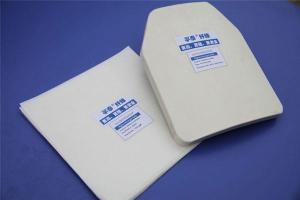

Curved chest insert plates
Ceramic composite plates

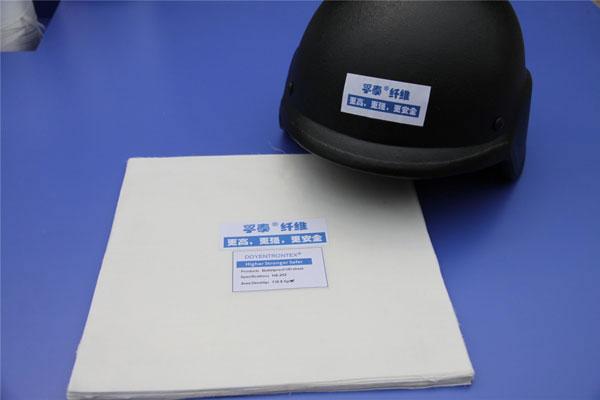

Bulletproof helmets
Hand shields
Light rigid armor for vehicles, ships and airplanes
Building armor and explosion spacers
Bank counters
Cabin doors
Warcraft floors

Tongyizhong is a reputable UHMWPE hard armor ballistic fabric manufacturer and supplier, develop and manufacture UHMWPE fiber material since 1999. UHMWPE fiber is short for abbreviation as ultrahigh molecular weight polyethylene fiber, high performance material for ballistic fabric and plate, bulletproof body armor and other personal protection products. Engineering with dry-Jet wet spinning technique, we provide high quality lightweight polyethylene fiber and UHMWPE hard armor ballistic products with competitive prices.
