Body Armor UHMWPE Ballistic Fabric

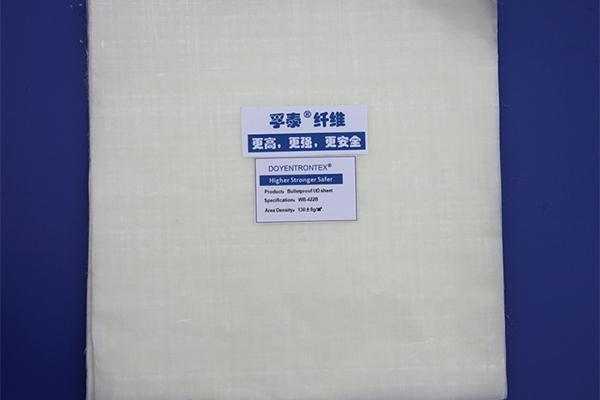

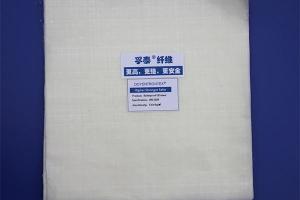

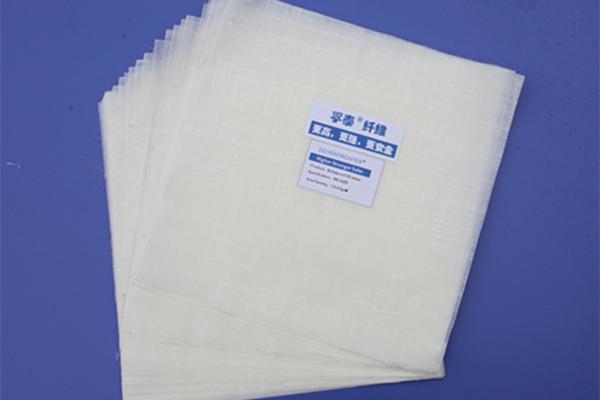

TYZ WB-422B ballistic fabric is made of the UHMWPE fiber. Its raw material is comprised of 2 unidirectional arranged fiber webs which overlap each other by 90°. The materials are then processed into ballistic fabric with specific composited processing technology. Its appearance is white fiber slice. The ballistic fabric is applied to the soft bulletproof field for its soft and comfortable texture. The ballistic fabric is light and can provide good protection in any condition. And it has good wet resistance and can resist to the alkali, acid and other chemicals. Besides, it has ultraviolet radiation resistance and aging resistance. It’s outstanding bulletproof performance can greatly reduce the deformation on the back and avoid excessive sag to the human body which are caused by blunt trauma.

Model Surface density thickness Normal size
WB-422B 130±8g/m2 0.16±0.02㎜ 1.2m×100m

The ballistic fabric is usually used to make the soft and light bulletproof body armors for the police, armed police, law enforcement, military, chief, leaderships and other important persons.

Protection performance:
36 layers: They avoid the penetration of the 9mm John rabe hand bullet from the Uzi 9mm submachine gun.
51 layers: They avoid the penetration of 54 type 7.62mm lead and zinc bullet from the 54 type 7.62m pistol.
66 layers: They avoid the penetration of 7.62mm lead and zinc bullet from the 79 type 7.62mm submachine gun.

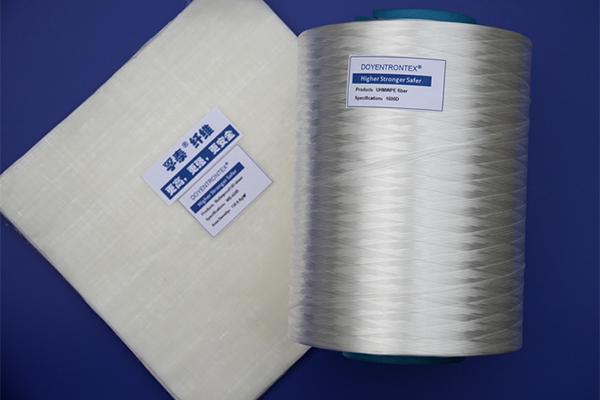

Tongyizhong is a reputable body armor UHMWPE ballistic fabric manufacturer and supplier, develop and manufacture UHMWPE fiber material since 1999. UHMWPE fiber is short for abbreviation as ultrahigh molecular weight polyethylene fiber, high performance material for making ballistic fabric and plate, bulletproof body armor and other personal protection products. Engineering with dry-Jet wet spinning technique, we provide high quality lightweight polyethylene fiber and ballistic UHMWPE body armor products with competitive prices.
