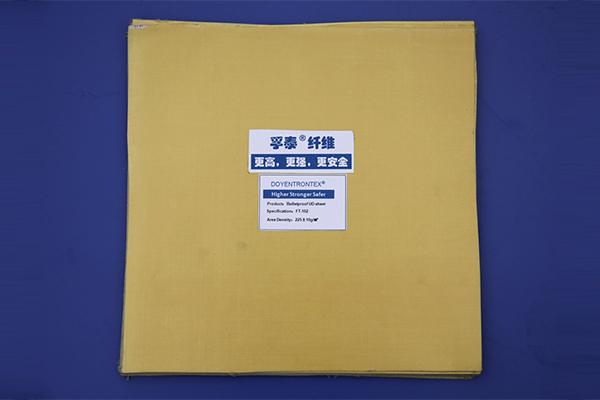

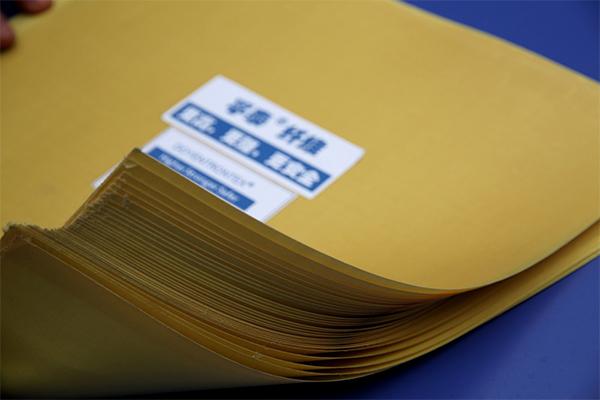

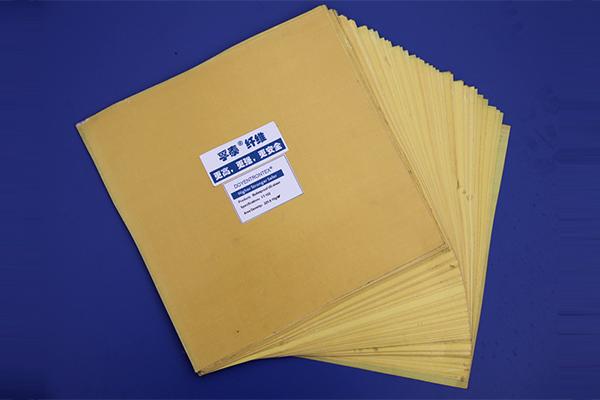

TYZ FT-102 ballistic fabric is made of the aramid fiber. Its raw material is comprised of 2 unidirectional arranged fiber webs which overlap each other by 90°. The materials are then processed into ballistic fabric with specific composited processing technology. Its appearance is yellow fiber slice.
| Model | Surface density | Thickness | Normal size |
| |
225±10g/m2 | 0.2㎜ | 1200×2420㎜ |
Application:
Light and soft texture bulletproof body armors.
Protection performance:
24 layers: They avoid the penetration of the 9mm John rabe hand bullet from the Uzi 9mm submachine gun.
29 layers: They avoid the penetration of 54 type 7.62mm lead bullet from the 54 type 7.62m pistol.
33 layers: They avoid the penetration of 7.62mm lead bullet from the 79 type 7.62mm submachine gun.
