Body Armor Ballistic Ceramic Plate

Doyentrontex Ceramic Composite Plate

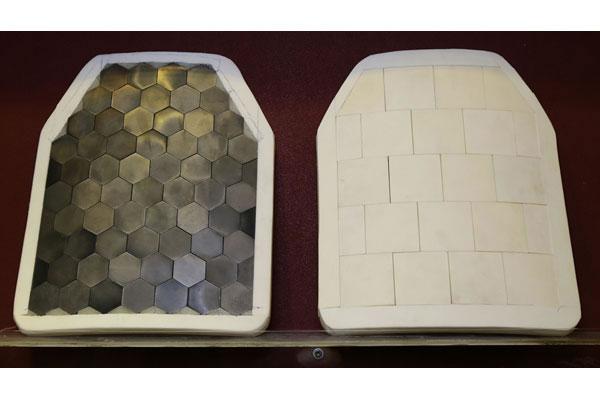

The Doyentrontex ZF series of ceramic composite plates is based on a backup plate made of UHMWPE fiber. The backup plate is combined with a silicon carbide or aluminum ceramic and a special gel through a thermal pressing molding. These composite ballistic plates are resistant to water, moisture, aging, and collisions, making them outstanding for stopping bullets at high velocities, even under harsh application environments.

Ceramic Composite Plate:
Product Product name Protection level Size W×L×H mm Appearance Weight （kg）
ZF-143S SiC composite plate NIJ-IV, Stand alone 250×300×22 Type E, R:400 2.4±0.02

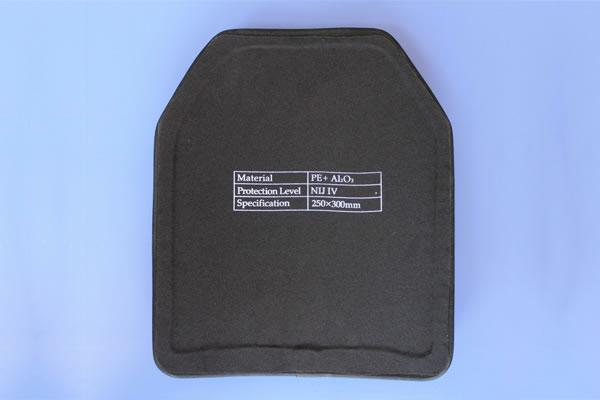

ZF-143A Al2O3 composite plate NIJ-IV, Stand alone 250×300×22 Type E, R:400 2.9±0.05
ZF-143SZ SiC composite plate NIJ-IV, ICW IIA vest 250×300×20 Type E, R:400 2.3±0.02
ZF-133S SiC composite plate NIJ-III+, Stand alone 250×300×18 Type E, R:400 1.85±0.05
ZF-133SZ SiC composite plate NIJ-III+, ICW IIA vest 250×300×18 Type E, R:400 1.65±0.05
ZF-133SZIII SiC composite plate NIJ-III, ICW IIIA vest 250×300×18 Type E, R:400 1.3±0.05
ZF-133A Al2O3 composite plate NIJ-III+, Stand alone 250×300×18 Type E, R:400 2.3±0.02

Tongyizhong is a reputable body armor ballistic ceramic plate manufacturer and supplier, develop and manufacture UHMWPE fiber material since 1999. UHMWPE fiber is short for abbreviation as ultrahigh molecular weight polyethylene fiber, high performance material for making ballistic fabric and plate, bulletproof body armor and other personal protection products. Engineering with dry-Jet wet spinning technique, we provide high quality lightweight polyethylene fiber and bulletproof body armor products with competitive prices.
